阀门和配件

INNOVA N

截止单座阀

INNOVA N型阀门是为卫生应用而设计的气动截止单座阀.  这种阀门被授权取得3-A标识。

INNOVA Mini N

Shut-off Single Seat Valve

The INNOVA Mini N valve is a shut-off single seat valve suitable for any use that the pharmaceutical, chemical, food or beverage industries could be required.。

INNOVA Mini N Aseptic

Shut-off Single Seat Valve

The aseptic INNOVA Mini N valve is a shut-off single seat valve suitable for any sterile use that the pharmaceutical, chemical, food or beverage industries could be required.。

INNOVA K

换向单座阀

INNOVA K型阀门是为卫生应用而设计的气动分流换向单座阀。

INNOVA Mini K

Divert Single Seat Valve

The INNOVA Mini K valve is a pneumatic single seat valve. It uses to divert the product with a converging flow in hygienical applications of the food, beverages, pharmaceutical or chemical industries.。

INNOVA Mini K Aseptic

Divert Single Seat Valve

The INNOVA Mini K valve is a pneumatic single seat valve. It uses to divert the product with a converging flow in sterile applications of the food, beverages, pharmaceutical or chemical industries.。

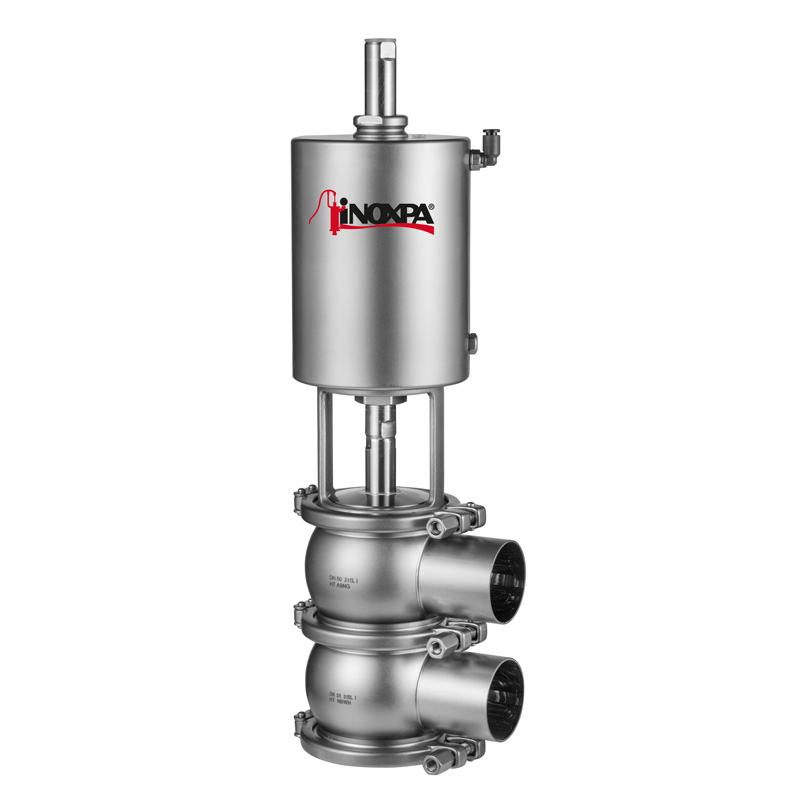

INNOVA M

水平截止单座阀

INNOVA M型阀门是为卫生应用而设计的气动水平截止单座阀。

INNOVA L

Divert Single Seat Valve

The L type valve is a pneumatic divert single seat valve with diverging flow designed for hygienic applications. The plug is specifically designed to manage diverging flows, given that it closes against the direction of flow (inlet via the central body and outlet via the upper or lower bodies).。

INNOVA G

比例流量调节阀

INNOVA G-型阀门是一个用于卫生应用的气动流量控制的单座阀. 它的主要功能是起到调节流量以及控制压力，达到水平状态。

INNOVA F

Tank Bottom Single Seat Valve

The INNOVA F valve is a shut-off single seat valve designed specifically for installation at the tank bottom for use in hygienic applications.。

INNOVA D

单座双密封防混阀

INNOVA D型阀门是一款气动常闭型单座双密封结构的阀门，阀座上带有二道密封，通过上下二道密封之间形成了隔离的泄露腔。

INNOVA J

Overflow Single Seat Valve

The INNOVA type J valve is a pneumatic single seat valve designed for use as overflow valve in hygienic installations.Its most important applications involve operating as a by-pass valve for positive displacement pumps or protecting equipment against excessive pressure.Adjusting the screw on the upper part sets the spring pressure, which sets the valve’s closing pressure.The valve opens when the set pressure is exceeded.The valve comes with an actuator that enables liquid to flow during CIP cleaning processes.。

INNOVA T

型罐底双座阀

INNOVA T型防混阀是一款专为卫生应用而设计、安装在罐底和箱底的气动双座双密封阀，通过两个阀座之间在大气压作用下形成的泄漏检测腔，它可以安全地分离两种产品，其中之一通常是CIP（清洁产品）。

INNOVA P

双座双密封防混阀 自提升清洗

INNOVA P型阀门是为卫生应用而设计的气动双座双密封自提升清洗防混阀。

INNOVA S

双座双密封防混阀 外接CIP清洗

INNOVA S型阀门是为卫生应用而设计的气动双座双密封外接CIP清洗的防混阀。

A480 / A490

Butterfly Valve

Butterfly valves A480, whether manually or automatically operated, can be used in most liquid product applications in the food-processing, pharmaceutical and chemical industries. The design of the butterfly valve between flanges A490 facilitates its installation and maintenance, allowing the extraction of the valve by means of 4 screws while the flanges welded to the installation remain fixed. Sanitary butterfly valves can be operated automatically through an actuator or manually with a handle. The handle blocks the valve in the "open" or "closed" position, although there are also other models with intermediate positions. The actuator transforms the axial movement of the piston into a 90º rotary movement which it transmits to the disc.。

A470

Leakage Butterfly Valve

The A470 leakage butterfly valve can be used in most liquid product applications in the food-processing, pharmaceutical and chemical industries. The valve A470 offers a safe separation of products and prevents accidental mixing in case of gasket failure. The most usual applications are the ones that require safe separation of the product and CIP solutions in a single point or at the end of a manifold (e.g. CIP return) or entry of a CIP solution into a tank (through a spray ball).。

4800

焊接式蝶阀

关于蝶阀, 无论是手动控制还是气动控制，都能应用在食品加工、制药和化 工等绝大部分液态产品的应用中。

4900

对夹式蝶阀

关于对夹式蝶阀, 无论是手动控制还是气动控制，都可以用在大多数流体产品生产过程中，例如食品加工、饮料、啤酒、生物制药和日用化工等相关行业。

VeeValv

隔膜阀

隔膜阀有手动和气动操作二种，专门用于食品和制药领域要求卫生级别高的无菌工况，该阀具有良好的流量控制和打开/关闭功能。

NDL

Diaphragm Valve

The NDL (Non Dead Leg T Valve) diaphragm valves, manually or pneumatically operated, are specially designed for use on aseptic processes in the pharmaceutical industry. The valves are widely used at points of use in the loops of purified water (PW) or water for injections (WFI).。

PharmaValve

Radial Diaphragm Valve

The Pharmavalve is a radial diaphragm valve, manually or pneumatically operated, specially designed for critical processes where any contamination, dead leg zones or leakage are to be avoided. Thus, the valve is suitable for hygienic and aseptic processes in the pharmaceutical and bio-pharmaceutical industries as well as in clean rooms.。

C-TOP S / C-TOP S AS-I

反馈控制单元

The C-TOP S control unit can adapt to any INOXPA actuator, and both efficiently and individually automate pneumatically driven process valves. These include: butterfly, ball, diaphragm and single or double seat valves.。

C-TOP REED

反馈控制单元

The C-TOP Reed control unit can adapt to any INOXPA actuator, and both efficiently and individually automate pneumatically driven process valves. These include: butterfly, ball or single or double seat valves.。

C-TOP+

Control Unit

The C-TOP+ is a pneumatic control unit designed to ensure an optimum control over the INOXPA process valves。

C-TOP+ AS-i

Control Unit

The C-TOP+ control unit with AS-i (Actuator Sensor Interface) communication is designed or intended for the optimal automation of INOXPA process valves。

A640

球阀

Sanitary ball valves A640, whether manually or automatically operated, are used mainly with viscous fluids containing solid particles, and, generally, in applications requiring an unobstructed flow. Suitable for the food-processing, beverage, wine-making, oil-making, cosmetic and chemical industries. The ball valve can be operated automatically with an actuator or manually with a handle. The handle blocks the valve in the "open" or "closed" position. The actuator transforms the axial movement of the piston into a 90º rotary movement which it transmits to the ball.。

6400

球阀

球阀，无论手动或自动致动的，主要用于与含有粘性流体的固体颗粒，并且，通常，在要求无阻碍的流动的应用程序。

72700

止回阀

止回阀能防止液体倒流，确保液体 只向一个方向流动。

74700

手动溢流阀

溢流阀是一种为了过压保护管道的安全阀门,用于容积泵的压力泄放旁路 ,配件, 容器,等. 采用卫生级不锈钢设计与生产制造，74700阀是过压保护相关设施最合适的阀门，广泛应用在乳制品，食品，饮料，制药和精细化工等行业。

7550

Pressure-Vacuum Valve

Pressure-vacuum valve is a valve designed to maintain atmospheric pressure inside the tank while it is being filled or emptied. It is widely used in the food-processing, wine-making, cosmetics and chemical industries as well as in the beverage and oil production.。

Sampling Valve

The sampling valves are designed to solve the need to take samples in liquid process facilities in the food-processing and chemical industries as well as in all other processes that require sanitary equipment.。

Valve Manifold

Manifolds of the INOXPA valves allow to centralize the functions of one or various tanks in a modular way, enhancing the efficiency of the system and control over the process。

Flow Divert Panel

。

81700/82700/83700

Filters

Filters have a wide range of applications in the food-processing, cosmetics and some chemical industries as well as in auxiliary services of the pharmaceutical industry.They have a hygienic design and are used to filter particles capable of damaging pumps and other equipment.。

Wedge Wire Screen Cylinders

Screens suitable for angular filter, straight filter and Y filter in the food-processing, cosmetics, pharmaceutical and some chemical industries.It is widely used for prefiltration of liquids with solids with the size even smaller than the sizes of the perforated sheet.。

8000

管道试镜

管道视镜是由卫生级不锈钢管式结构与一根玻璃管组合而成。

8057

卡箍式平面试镜

卡箍式平面视镜是由一块玻璃与卫生级卡箍件组合而成。

8050

活接式平面试镜 DIN

A活接式平面视镜的是由一块玻璃与卫生级DIN标准螺纹固定而成.视镜安装在罐子上用来检查罐内的产品，液位和工艺过程等等，可广泛应用于食品加工、日化、生物医药和精细化工等领域.。

Unions and Fittings

HIGHEST QUALITY AND SERVICE STANDARDS INOXPA production processes are subject to the highest requirements。
